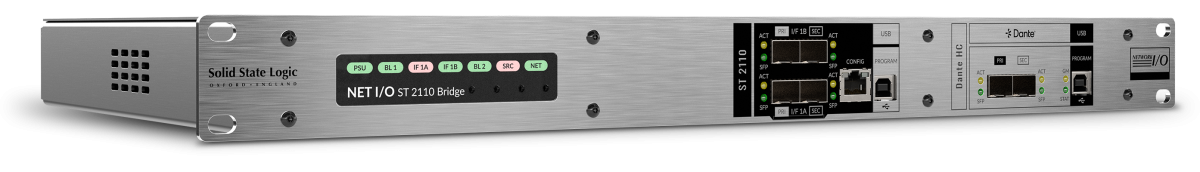

Net I/O ST 2110 Bridge

High-Capacity Standalone ST 2110 and Dante Converter

Overview Features

Seamless ST 2110 Integration for Any Broadcast Facility

The Net I/O ST 2110 Bridge is a high-capacity standalone ST 2110 and Dante converter that provides up to 512 channels of high-capacity conversion between ST 2110 and Dante in a compact 1RU chassis. With several flexible deployment options, the ST 2110 Bridge can be used to provide high channel count connectivity between ST 2110 and Dante networks whilst retaining the individual benefits both provide.

Available in 256 or 512 Channels

Able to integrate with any Dante or ST 2110 connected broadcast audio console or audio network, the Net I/O ST 2110 Bridge can be deployed in either 256 or 512 channel versions. The 256-channel model is a cost-effective unit that can be retrospectively upgraded to 512-channels and also offers optional sample rate conversion. The ST 2110 Bridge provides redundancy for both the media networks (ST 2110 and Dante) and the power supplies.

SRC Control

The Net I/O ST 2110 Bridge provides optional SRC functionality between the ST 2110 and Dante environments. With SRC enabled the Dante channel count is limited to 256 (as per the existing HC Bridge SRC). This simplifies clocking requirements; the two networks can be clocked independently, including running the Dante network at 96 kHz if required. With SRC disabled the Dante channel count is 512.

Net I/O ST 2110 Bridge Connection Examples

Here are just a few examples of how you might use Net I/O ST 2110 Bridge in your setup:

Features

Up to 512 Tx and 512 Rx audio channels of ST 2110 connectivity

Up to 64 Tx and 64 Rx streams

Full support for ST 2110-30 Level A, B and C streams

Full support for ST 2022-7 stream redundancy

NMOS IS-04 and IS-05 compatibility for discovery and connection management

Supports source-specific multicast (SSM)

512 Tx and 512 Rx Dante audio channels (256 with SRC enabled)

Redundant power supplies

Redundant 1G SFP media network connectivity (ST 2110 and Dante)
