Desktop Fader Tile Plus

Advanced Portable System T Control Interface

Flagship Portable Control

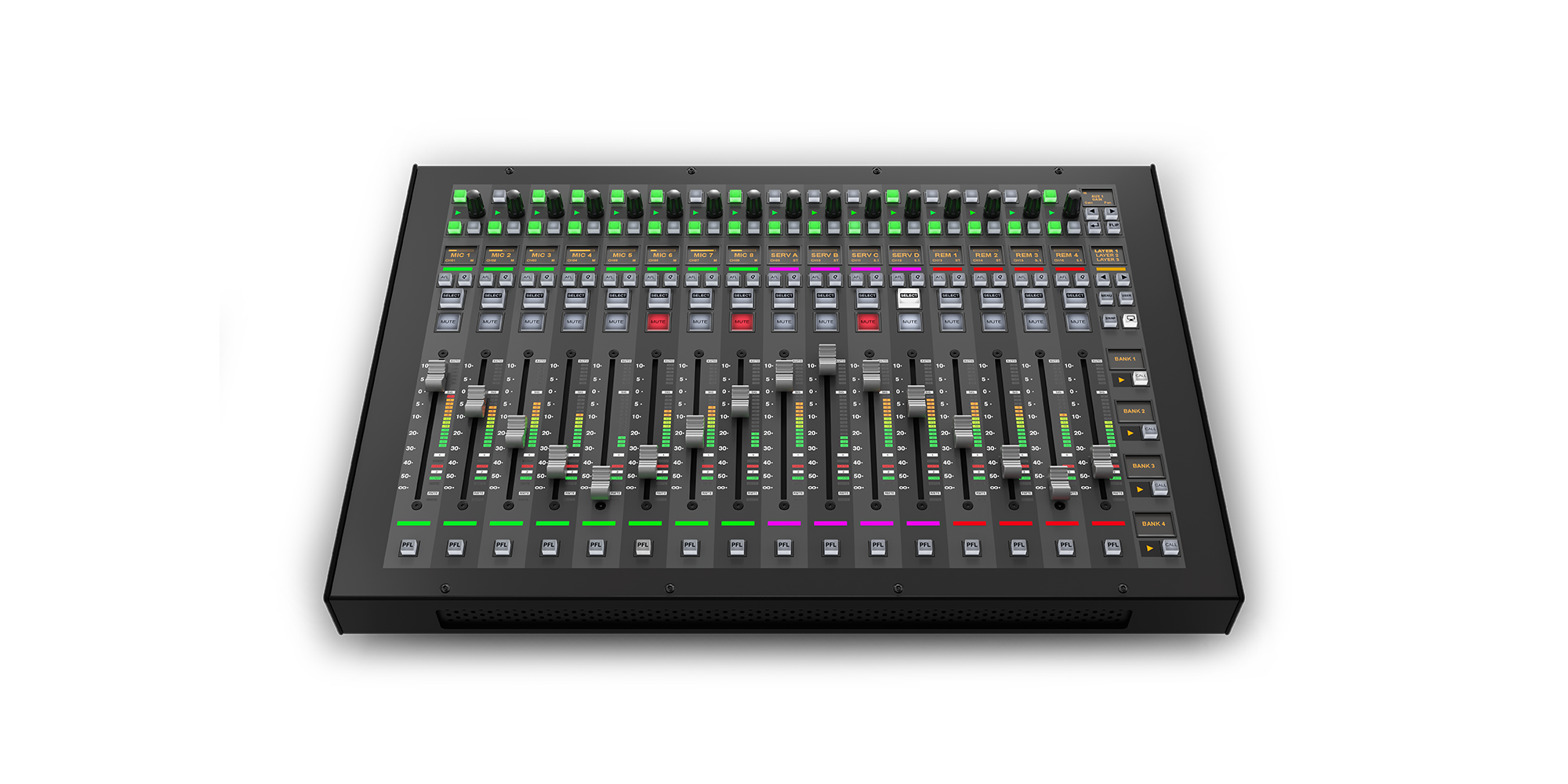

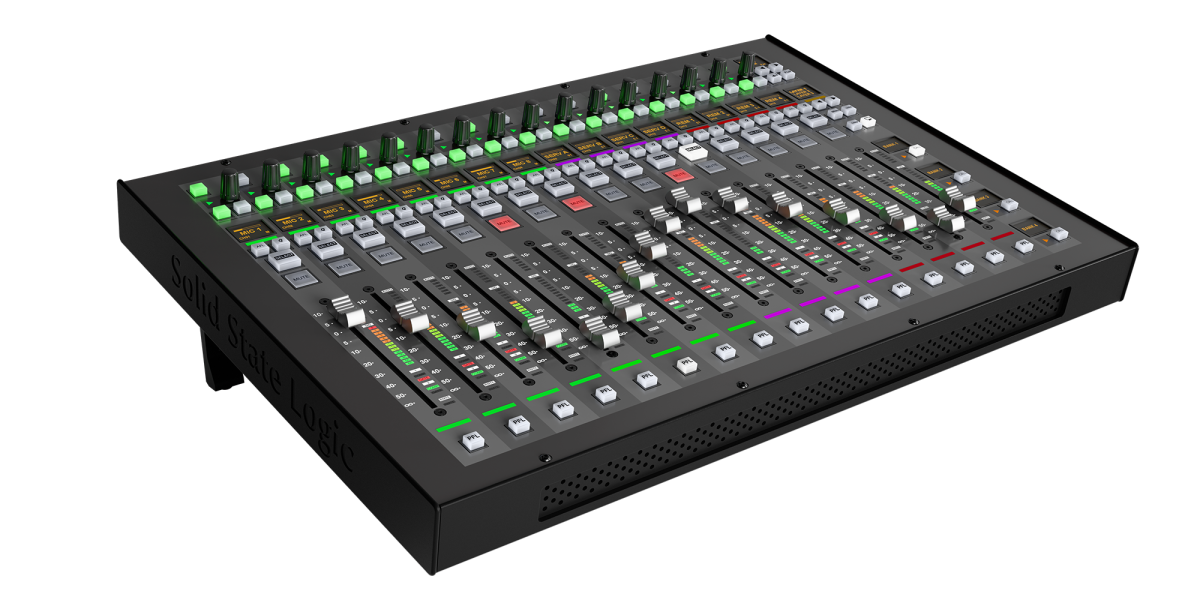

The System T Desktop Fader Tile Plus (DFT+) provides portable control for powerful, compact System T installations. Used in conjunction with Tempest Control App, the DFT+ offers dedicated hands-on control for System T installations, with enhanced visual feedback to meet the needs of the most demanding operations. Additionally, a System T Desktop Fader Tile Plus and computer running TCA software can be combined within a single system along with main control surface(s), providing custom solutions to fit any application or environment.

Portable System T Control

With the same comprehensive levels of control functionality as SSL’s flagship S500 fader tile, the new DFT+ provides access to up to 960 channel paths on a single tile. It boasts 16 full-size physical faders, 15 control layers, and four banks per layer, as well as dedicated PFL buttons and back stop PFL. Features include input, compression, gate, and automix metering on each channel input, as well as an OLED screen for enhanced visual feedback. This expanded metering functionality gives users more detailed monitoring and control over every audio signal in their production setup, directly from the fader tile.

Hands on, configurable control over signal paths

  • 16 faders with fifteen layers, and four banks per layer
  • Freely configurable to control a variety of different signal paths with clear, bright colour coding
  • Each fader strip has a 100mm motorised fader, level meter and a collection of status LEDs covering Dynamics, De-ess mode, Dialogue Automix and Remote AFV or Production Automation control
  • Dedicated PFL Solo key plus back stop fader PFL
  • Additional keys for Mute, AFL and Select, which controls a menu of tile functions in conjunction with the touch screen interface
  • Three-line OLED delivers a variety of visual feedback of data
  • Multi-function Quick Encoder with three switches
  • Each strip features SSL’s acclaimed ‘Super-Q’ key which allows the user to spill the contributing elements or destinations for a selected fader/path across the control surface providing instant feedback and mix control either from a channel- or mix-centric view
  • Querying a channel shows the destinations to which the channel is routed
  • Querying a mix bus will show the channels that are contributing to that mix

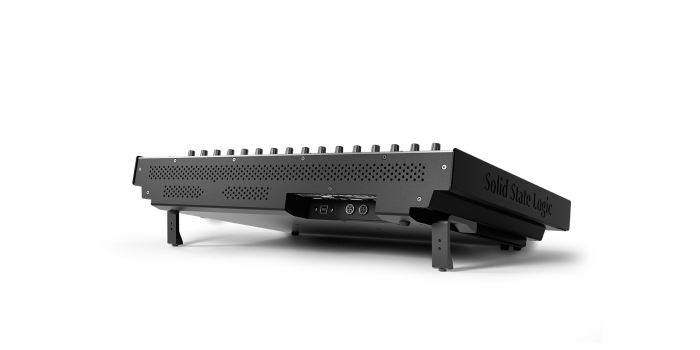

  • Rugged enclosure suitable for desktop and/or portable use
  • Optional feet provide flat or angled positioning options
  • USB Connectivity (USB B) to TCA PC
  • Redundant power supplies
