Desktop Fader Tile

Portable System T control interface

Portable, flexible and cost effective

System T Desktop Fader Tiles provide portable control for powerful, compact System T installations. Used in conjunction with Tempest Control App they provide dedicated hands-on control for System T installations. Additionally, a System T Desktop Fader Tile and computer running TCA software can be combined within a single system along with main control surface(s), providing custom solutions to fit any application or environment.

“The Fader Tiles are so well constructed. We’re optimistic about their durability with novice users.”

TIM MACARTHUR, DIRECTOR OF TECHNICAL OPERATIONS AT EMERSON COLLEGE

Portable System T Control

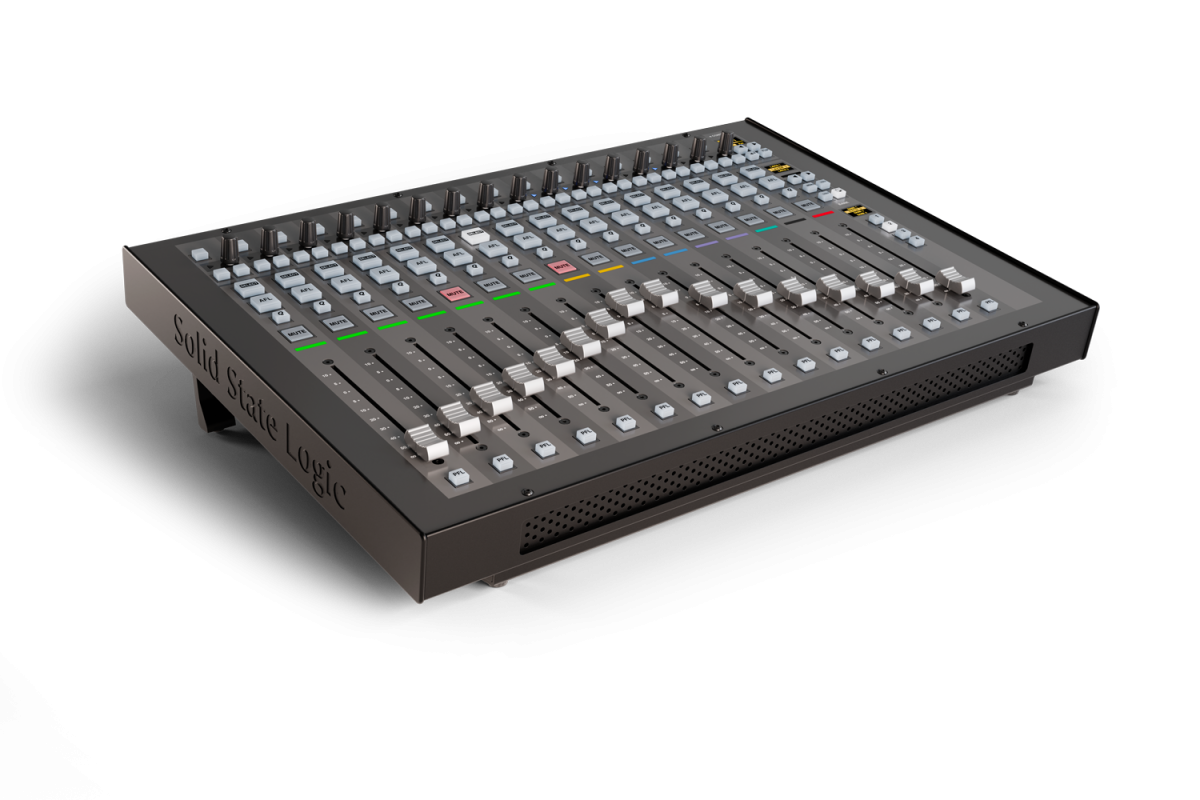

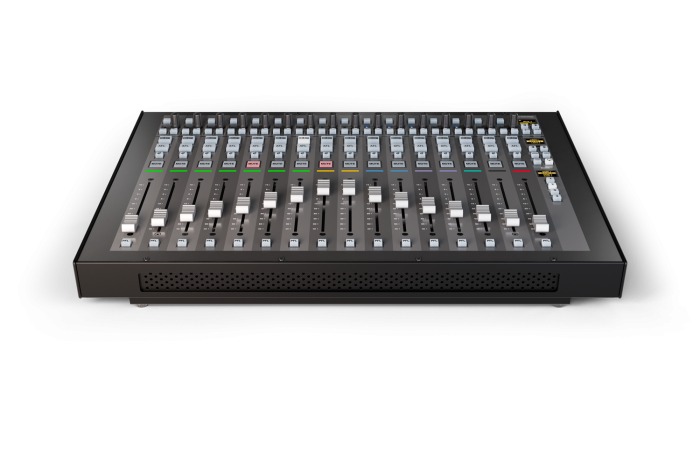

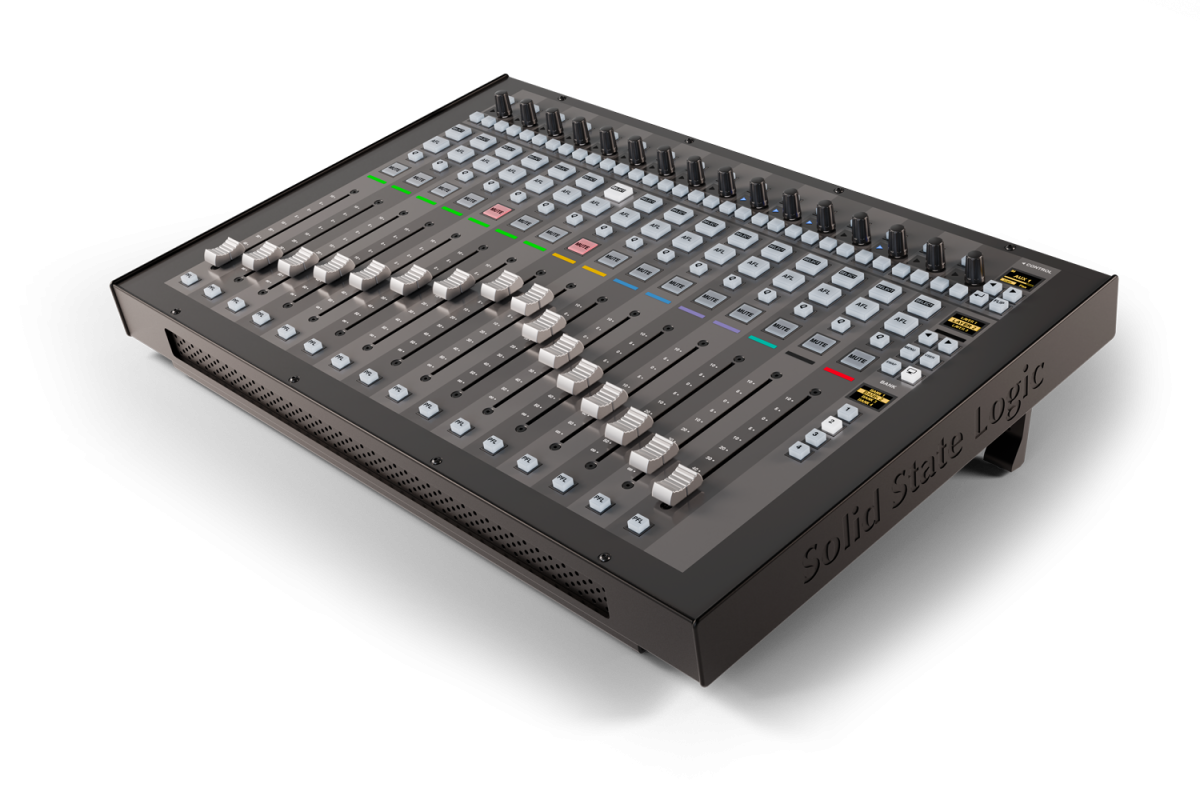

The Fader Tile has fifteen layers with four banks per layer, giving rapid access to 960 paths via dedicated Layer & Bank buttons. Each fader strip has a 100mm motorised fader and a PFL Solo key plus back stop fader PFL. Additional keys include Mute, AFL, Select and a ‘Q’ key that accesses SSL’s unique Super Q system. Each strip features a set of Quick Controls (a push switch encoder and three assignable keys) that work in combination with vertically correspondent aspects of the screen interface above. Colour flag LEDS visually indicate selected functions.


Hands on, configurable control over signal paths


  • A portable, flexible and cost effective 16-fader controller providing tactile control over System T functionality alongside Tempest Control App
  • Optional feet provide flat or angled positioning options
  • 16x 100mm motorised faders with fifteen layers, and four banks per layer
  • Freely configurable to control a variety of different signal paths with clear, bright colour coding
  • Dedicated PFL and AFL Solo keys, plus back stop fader PFL
  • Bank, Layer and Quick Control page OLED located on sidebar
  • Navigation and home keys located on sidebar
  • Quick control encoder and 3 switches per fader
  • Dedicated Query, Mute and Select keys per fader
  • USB connectivity to TCA PC

Desktop Fader Tile - Documents

Associated software and firmware downloads for this product are available with registered accounts on our support hub here.

System T Brochure

Download

Find a broadcast partner

Click here for your regional broadcast contact.
